Introduction:
The 2009 FXSTC drive belt tension tool is a critical component for maintaining the performance and longevity of your Harley-Davidson Softail Custom motorcycle. This tool is designed to measure the tension of the drive belt accurately, ensuring smooth power transmission from the engine to the rear wheel. Proper belt tension is essential to prevent slippage and reduce wear on the belt and pulleys. This guide will discuss everything you need to know about using the 2009 FXSTC drive belt tension tool, including how to check belt deflection and ensure your motorcycle’s transmission is in top condition.
Understanding the 2009 FXSTC Drive Belt Tension Tool:

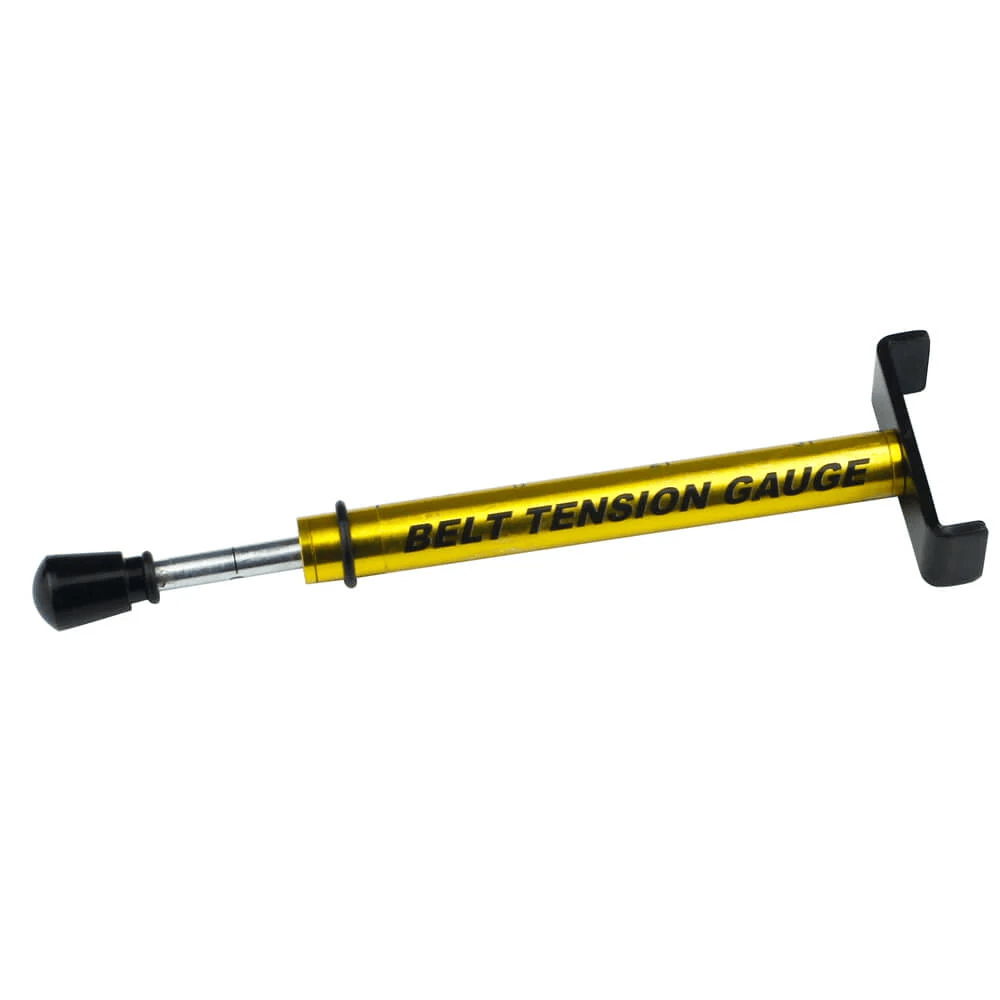

The 2009 FXSTC drive belt tension tool is a specialized gauge used to measure the tension of the drive belt on a Harley-Davidson FXSTC motorcycle. The drive belt is a critical component that transfers power from the transmission to the rear wheel, and maintaining the correct tension is vital for the smooth operation of the motorcycle.
How to Use the 2009 FXSTC Drive Belt Tension Tool:
Using the 2009 FXSTC drive belt tension tool involves a few simple steps to ensure the drive belt is at the correct tension. Here’s a step-by-step guide:
- Prepare the Motorcycle: Before you begin, ensure the motorcycle is on a level surface with the transmission in neutral. The motorcycle should be at ambient temperature to ensure accurate measurements.
- Locate the Drive Belt: Find the belt and identify the loosest spot. This is usually midway between the front and rear pulleys. It is essential to check belt deflection at this point to get an accurate reading.
- Set Up the Belt Tension Tool: Place the 2009 FXSTC drive belt tension tool at the loosest spot on the belt. The tool is designed to apply a specific amount of pressure to the belt to measure the deflection.
- Measure Belt Deflection: Apply pressure with the 2009 FXSTC drive belt tension tool and observe the deflection or movement in the belt. The gauge will provide a reading that indicates whether the belt tension is within the recommended range. Adjustments must be made if the belt deflection is not within the specified limits.
- Adjust Belt Tension: If the belt tension is too loose or tight, adjustments can be made using the tension adjustment bolts near the rear axle. Make small adjustments and recheck the tension with the 2009 FXSTC drive belt tension tool until the belt deflection falls within the recommended range.
Common Mistakes to Avoid:
When using the 2009 FXSTC drive belt tension tool, it’s essential to avoid some common mistakes that could lead to inaccurate measurements or improper belt tension:
- Not Checking at the Loosest Spot: The tension should always be checked at the loosest point in the belt. Checking at a tighter spot can give a false sense of proper tension.
- Ignoring Ambient Temperature: When checking belt tension, the motorcycle should be at ambient temperature. Temperature variations can affect the belt’s elasticity and lead to inaccurate measurements.
- Over-Tightening the Belt: Over-tightening the belt can lead to excessive wear on the belt and pulleys, reducing the lifespan of these components.
Troubleshooting with the 2009 FXSTC Drive Belt Tension Tool:
The 2009 FXSTC drive belt tension tool is not just for routine maintenance; it can also be an essential diagnostic tool. If you experience unusual vibrations, noise, or power loss, improper belt tension might be the cause. The tension tool lets you quickly check whether the drive belt is correctly adjusted. If the tool indicates the tension is outside the recommended range, you can address the problem immediately, potentially avoiding more severe damage.
Maintaining the Longevity of Your Drive Belt:
Using the 2009 FXSTC drive belt tension tool is part of a broader strategy to maintain your motorcycle’s drivetrain health. Consistent monitoring of the drive belt’s tension helps prevent excessive wear and tear, which could lead to belt breakage or damage to the sprockets. A well-maintained belt is less likely to crack or stretch over time, prolonging its lifespan and ensuring better performance. In addition to regular tension checks, cleaning the belt periodically and checking for any signs of contamination from oil or debris is also important. Combining these maintenance practices with the precise measurements provided by the 2009 FXSTC drive belt tension tool will help you keep your motorcycle running smoothly for years.
Choosing the Right 2009 FXSTC Drive Belt Tension Tool:
When maintaining your Harley-Davidson FXSTC motorcycle, selecting the right 2009 FXSTC drive belt tension tool is crucial. Various tools are available on the market, but choosing one specifically designed for the 2009 FXSTC model is essential to ensure accurate measurements. A high-quality belt tension tool should provide clear readings and be easy to use, even for those with little mechanical experience. The ideal 2009 FXSTC drive belt tension tool should also be durable and capable of withstanding regular use. Investing in a reliable tool can save you from potential mechanical issues and costly repairs in the future, ensuring your motorcycle’s drive belt remains in optimal condition.
Conclusion:
The 2009 FXSTC drive belt tension tool is invaluable for any Harley-Davidson FXSTC owner. Proper use of this tool ensures that the drive belt is correctly tensioned, promoting smooth operation, preventing slippage, and reducing wear on the belt and pulleys. Following this article’s guidelines, you can maintain your motorcycle’s drive belt in optimal condition, ensuring a safe and enjoyable riding experience. Regular checks and proper maintenance using the 2009 FXSTC drive belt tension tool will help you avoid common issues and prolong the life of your motorcycle’s drive system.
